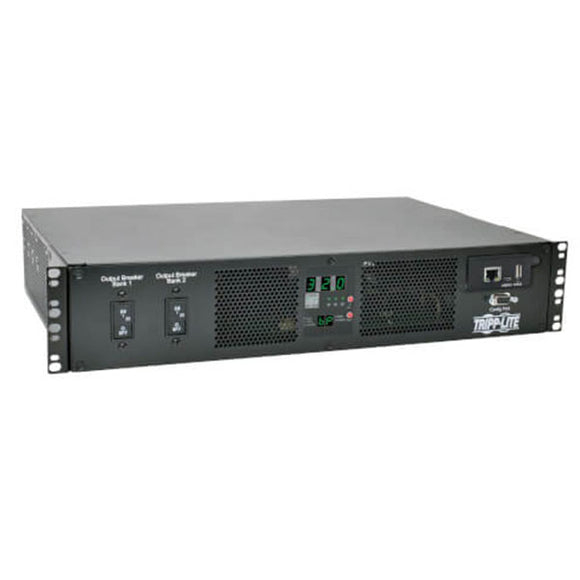

7.7Kw Single-Phase Ats / Switched Pdu, LX Platform Network Interface, 230V Outlets

⚡ 7.7kW Single-Phase ATS / Switched PDU – Tripp Lite, LX Platform, 2U Rackmount

🔍 Product Overview

The Tripp Lite 7.7kW Single-Phase Automatic Transfer Switch (ATS) / Switched Power Distribution Unit (PDU) delivers high-efficiency, intelligent power distribution for mission-critical IT systems. Designed for high-density environments like data centers, server rooms, and enterprise network closets, this 2U rackmount PDU ensures uninterrupted power flow with dual IEC309 32A input plugs. These inputs enable seamless transfer between a primary and backup power source, protecting connected devices from power disruptions.

With 18 individually controllable outlets—including 16 C13 and 2 C19—this PDU provides excellent load management and control. Each outlet can be powered on or off remotely, which is essential for rebooting unresponsive devices or managing power usage without on-site intervention.

The integrated LX Platform network interface offers remote access via Ethernet, SNMP, or a secure web browser. Administrators can monitor real-time input/output voltage, current draw, and environmental data from anywhere. Detailed logs, alerts, and threshold notifications help prevent overloads and ensure efficient power usage.

The built-in digital display shows voltage, current, and status information at a glance. Hot-swap capability enables continuous power delivery during maintenance.

✅ Key Features

• Power Capacity: 7.7kW at 230V

• Outlets: 16 x C13, 2 x C19 – all switched

• Inputs: Dual IEC309 32A (automatic transfer switching)

• Form Factor: 2U rackmount

• Management: LX Platform (remote monitoring and control)

• Display: Digital status screen for quick diagnostics

• Applications: Redundant power for IT racks, load balancing, remote site control
